StarTech.com Scheda Seriale PCI Express con 1 Porta - Controller PCIe RS232 - 16550 UART - Scheda Seriale di Espansione DB9 a Profilo Basso - Compatibile Windows e Linux
StarTech.com
Article Code: OC098740 - Vendor Code: PEX1S553LP - EAN: 0065030841733
Informazioni consegne:
Spese di Consegna: Spedizione Gratuita!
Consente di aggiunere una porta seriale RS-232 a qualsiasi computer a basso profilo o standard tramite uno slot di espansione PCI Express

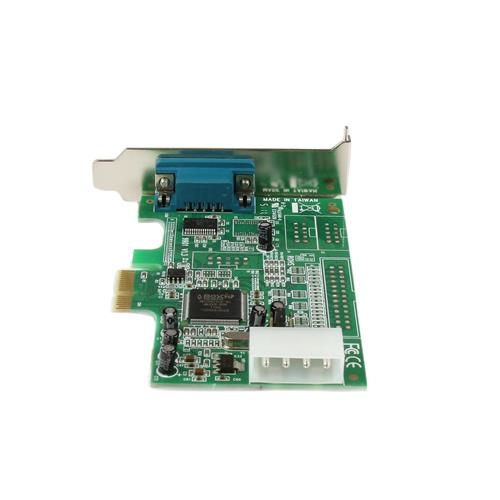

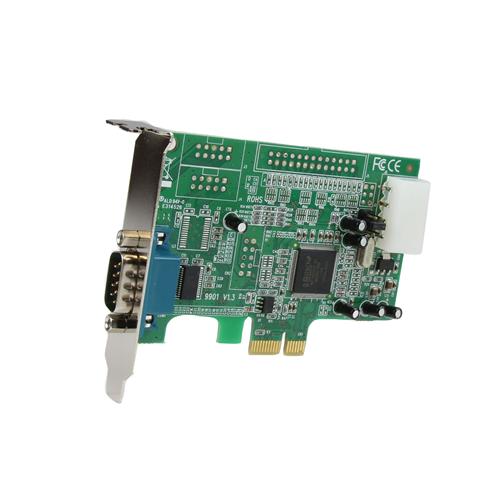

La scheda seriale PCI Express PEX1S553LP trasforma uno slot PCI Express in una connessione seriale RS-232 (DB9). La scheda è realizzata con un design a chip singolo nativo che consente di sfruttare tutte le funzionalità offerte da PCI Express (PCIe) riducendo al contempo il carico della CPU fino al 48% rispetto alle schede seriali a chip ponte convenzionali.

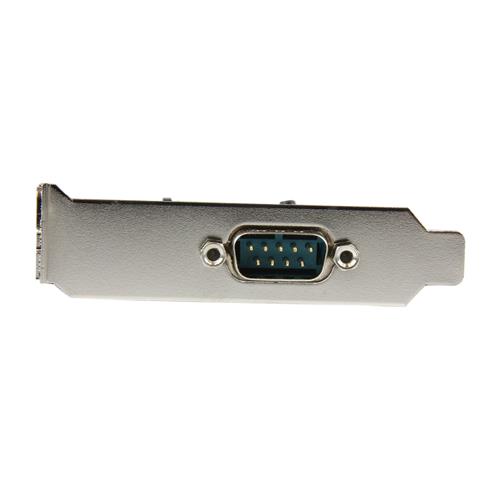

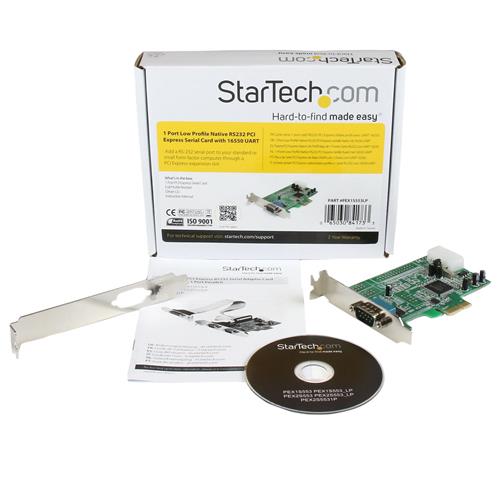

La scheda adattatore seriale PCI Express RS232 è compatibile con un'ampia gamma di sistemi operativi, tra cui Windows®, Linux Kernel da 2.6.11 a 4.11x, e viene fornita con una staffa a basso profilo/mezza altezza installata, ma include anche una staffa a profilo completo che consente di aggiungere una porta seriale a qualsiasi computer (indipendentemente dal fattore di forma del case).
The StarTech.com Advantage
| Dimensioni e peso | |
|---|---|
| Peso | 44 g |
| Altezza | 20 mm |
| Profondità | 105 mm |
| Larghezza | 80 mm |
| Connettività | |
| Porte seriali | 1 |
| Interfaccia host | PCIe |
| Tipo interfaccia seriale | RS-232 |
| Interfaccia di uscita | Seriale |
| Scheda di espansione standard | PCI 1.1 |
| Connettori periferiche (Molex) (4-pin) | 1 |
| Altre caratteristiche | |
| Sistema operativo compatibile | Linux, Mac OS 10.4.x |
| Design | |
| Interno | Sì |
| Colore del prodotto | Verde |
| Dati su imballaggio | |
| Profondità imballo | 174 mm |
| Altezza imballo | 32 mm |
| Larghezza imballo | 143 mm |
| Peso dell'imballo | 130 g |
| Drivers inclusi | Sì |
| Manuale dell'utente | Sì |
| Condizioni ambientali | |
| Intervallo di temperatura | -20 - 100 °C |
| Range di umidità di funzionamento | 5 - 85% |
| Intervallo temperatura di funzionamento | -10 - 80 °C |
| Caratteristiche | |
| Chipset | ASIX - MCS9922CV-AA |
| FIFO (Primo ad entrare, Primo ad uscire) | 128 B |
| Baud rate | 460,8 Kbit/s |
| Requisiti di sistema | |
| Sistema operativo Linux supportato | Sì |
| Altri sistemi operativi supportati | DOS, Windows XP Embedded |
| Compatibilità sistema operativo Mac | Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Sistema operativo Windows supportato | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Sistemi operativi server supportati | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Dettagli tecnici | |
| Certificati di conformità | CE, RoHS |
| Dati logistici | |
| Quantità per cartone principale | 75 pz |
| Larghezza scatola principale | 365 mm |
| Altezza scatola principale | 315 mm |
| Lunghezza del cartone principale | 692 mm |
| Codice del Sistema Armonizzato (SA) | 84733020 |
